Arachno

// a DOS intro made with 3 prompts that fits in 256 bytes

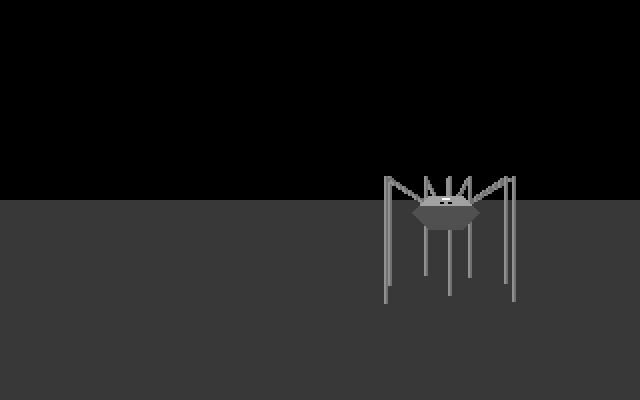

Animated capture of the ARACHNO intro: a flat-shaded spider paces left and right across a two-tone gray ground, blinking, then fires a red laser cone at the camera each time it crosses center.

Captured straight from the compiled binary. Slowed down for legibility.

Prompt log
  1. Prompt #1 - Start

    please create dos intro in asm with binary size <= 256b that renders animated walking 3d flat-shaded spiders possibly with shadow and orthographic/isometric view

  2. Prompt #2 - Make it pop

    can you use some tricks to make legs appear thicker and flat-shaded too and some blinking eyes if you have space, and optionally also specular to make it pop

  3. Prompt #3 - Squeeze-in some more

    can it go in a loop left to right and right to left ? and at some point start shooting laser towards the camera? figure out the tricks to pack it, golf some existing code, you can do it

  4. Prompt #4 - Build website

    can you now generate full 20s gif and generate website showing this gif and describing key prompts I gave you and link to final asm result

Source - arachno.asm
; ARACHNO - 256-byte DOS intro (.COM, mode 13h)
; Flat-shaded spider pacing left-right-left, side-lit 2x2px legs,
; faceted body, specular, blinking eyes - and it fires a red laser
; cone toward the camera each time it crosses the center.
; Renders direct to VRAM; specify ~10000+ cycles in DOSBox (avoids tearing).
; One triangle-wave routine drives position, gait, foot lift (quadrature
; sample at x+8) and even the body silhouette. No data tables.
;   release: nasm -f bin arachno.asm -o arachno.com
;   debug  : nasm -f bin -DDBG arachno.asm -o adbg.com
;            (renders to a back buffer, appends every frame to ALL.BIN,
;             exits after exactly one 256-frame patrol cycle)
org 100h

t equ 300h              ; frame counter, scratch RAM past program image
hdl equ 302h            ; debug-only: ALL.BIN file handle

start:
    mov al,13h          ; AX=0 at COM entry -> mode 13h
    int 10h
%ifndef DBG
    push 0a000h
    pop es
%else
    xor ax,ax
    mov [t],ax          ; explicit zero-init (debug only, size-free)
    mov ah,3ch          ; create ALL.BIN once, up front
    xor cx,cx
    mov dx,fname
    int 21h
    mov [hdl],ax
%endif

main:
%ifdef DBG
    mov ax,cs           ; back buffer segment = CS+1000h (DS stays = CS)
    add ah,10h
    mov es,ax
%else
    mov dx,3dah         ; wait for vertical retrace
.vs:in al,dx
    test al,8
    jz .vs
%endif
    ; --- ping-pong position: x = 160 + tri(T), spans 96..224 ---
    inc word [t]
    mov ax,[t]
    call tri
    add ax,160
    xchg bp,ax

    ; --- background: black sky + gray ground ---
    xor di,di
    mov cx,16000
    xor ax,ax
    push cx
    rep stosw
    pop cx
    mov ax,1414h
    rep stosw

    ; --- 8 legs, 2x2px, lit from the left ---
    mov cl,8
.lg:
    imul si,cx,9        ; si = 9*i
    lea ax,[bp+si+8]
    call tri8           ; lift wave = stride wave of x+8 (quadrature)
    mov bl,56           ; bh is 0 here (shin countdown / body loop)
    sub bx,ax           ; bx = shin length 48..64 (elliptical foot path)
    lea ax,[bp+si]
    call tri8           ; stride wave -8..8
    add si,ax
    lea si,[bp+si-40]   ; si = knee/foot x
    call thigh          ; (kneex,88)->(bodyx,108)
    lea di,[si+88*320]  ; shin: vertical drop knee->foot
    mov ax,181ah        ; left column lit, right dark
.sh:stosw
    add di,318
    dec bx
    jnz .sh
    loop .lg

    ; --- body: flat-shaded octagon, lit cap over dark belly ---
    mov bl,98           ; bh is 0 after the shin countdown
.bd:
    mov al,bl
    add al,22
    call tri            ; -> |y-106| - 64
    neg ax
    sub ax,47           ; half-width = 17-|y-106|
    imul di,bx,320
    add di,bp
    sub di,ax
    mov cx,ax
    shl cx,1
    mov al,27           ; lit facet
    cmp bx,103
    jb .f
    mov al,22           ; dark facet
.f: rep stosb
    inc bx
    cmp bx,115
    jnz .bd

    ; --- blinking eyes (closed while x & 38h == 0) ---
    test bp,38h
    jz .ns
    lea di,[bp+101*320-3]
    xor ax,ax           ; black
    stosw
    inc di
    inc di
    stosw
.ns:
    ; --- specular strip on the lit cap ---
    lea di,[bp+99*320-2]
    mov ax,1f1fh        ; white
    stosw
    stosw

    ; --- laser cone toward the camera while crossing the center ---
    mov ax,bp
    sub ax,144
    cmp ax,32           ; fire while 144 <= x < 176
    jae .nl
    mov si,96
    mov al,12           ; red
.cl:
    imul di,si,319      ; row = 103+si, left edge = bp-si
    lea di,[bp+di+32960]
    mov cx,si
    shl cx,1
    rep stosb
    dec si
    jnz .cl
.nl:

%ifdef DBG
    mov bx,[hdl]        ; append this frame to the already-open ALL.BIN
    push es
    pop ds              ; back buffer = data source
    xor dx,dx
    mov cx,64000
    mov ah,40h
    int 21h
    push cs
    pop ds
    cmp byte [t],0      ; wrapped -> one full 256-frame cycle captured
    jnz main
    mov bx,[hdl]
    mov ah,3eh
    int 21h
    int 20h
fname: db 'ALL.BIN',0
%else
    jmp main
%endif

tri8:                   ; ax=v -> tri(v*8)/8 = -8..8
    shl ax,3
    call tri
    sar ax,3
    ret

tri:                    ; al=phase -> ax = triangle wave -64..64
    sub al,128
    jns .k
    neg al
.k: sub al,64
    cbw
    ret

thigh:                  ; row-DDA line (si,88)->(bp,108), 2x2px side-lit
    pusha
    sub bp,si
    imul bp,bp,13
    sar bp,1            ; x step 9.7 (dx*6.5 ~ dx*128/20)
    shl si,7            ; x accumulator
    mov bx,88*320       ; row offset
    mov cl,20
    mov ax,181ah        ; left column lit, right dark
.t: mov di,si
    shr di,7
    add di,bx
    stosw
    add di,318
    stosw
    add si,bp
    add bx,320
    loop .t
    popa
    ret
